cloudOTDR. Pro
Introducing the cloudOTDR Pro, the ultimate solution for testing and managing large networks. This advanced model is specifically designed for high volumes and offers unique external switch capabilities that allow for efficient management of multiple network elements.
Description.
The cloudOTDR is an innovative solution designed to enhance the testing and troubleshooting of fiber optic networks.

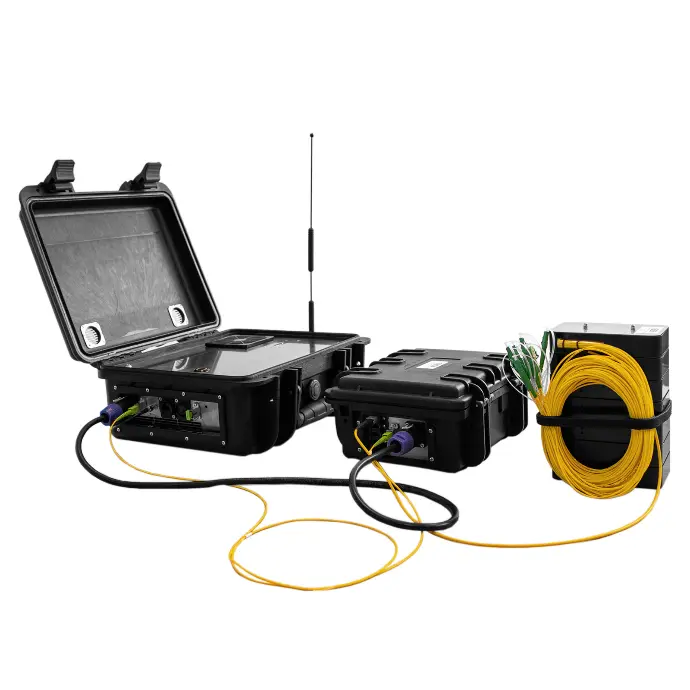

The cloudOTDR Pro model is equipped with an integrated OTDR which is controlled with a mobile app trough our cloudOTDR platform. It is designed to work with a local connected cloudSwitch (sold separately) and cloudOTDR Modular Launch Fiber (sold separately).
Due to the integrated high quality OTDR and ability to connect both local and remote installed cloudSwitches it is the best choice in high volume fiber measurement cases for installation, activation and monitoring situations.
Key features.
Feature | cloudOTDR Pro |
Application | High volume |
Integrated OTDR | Yes |
Integrated VFL | Yes |
OTDR wavelengths | 1310 + 1550 (S), 1625 (O), 1650 (O) |
Monitoring capable | Optional |
Integrated battery | Yes |
External battery | Optional |
Internal fiber ports | 1 |
External fiber ports | Refer to cloudSwitch |
Remote switching capable | Standard |
Connectivity | LAN / 4G |
Download full datasheet here
Included accessories.
- cloudOTDR power supply
- mobile network antenna with extension cable
- cloudOTDR-cloudSwitch connector cable
- Patchcord SC/APC
